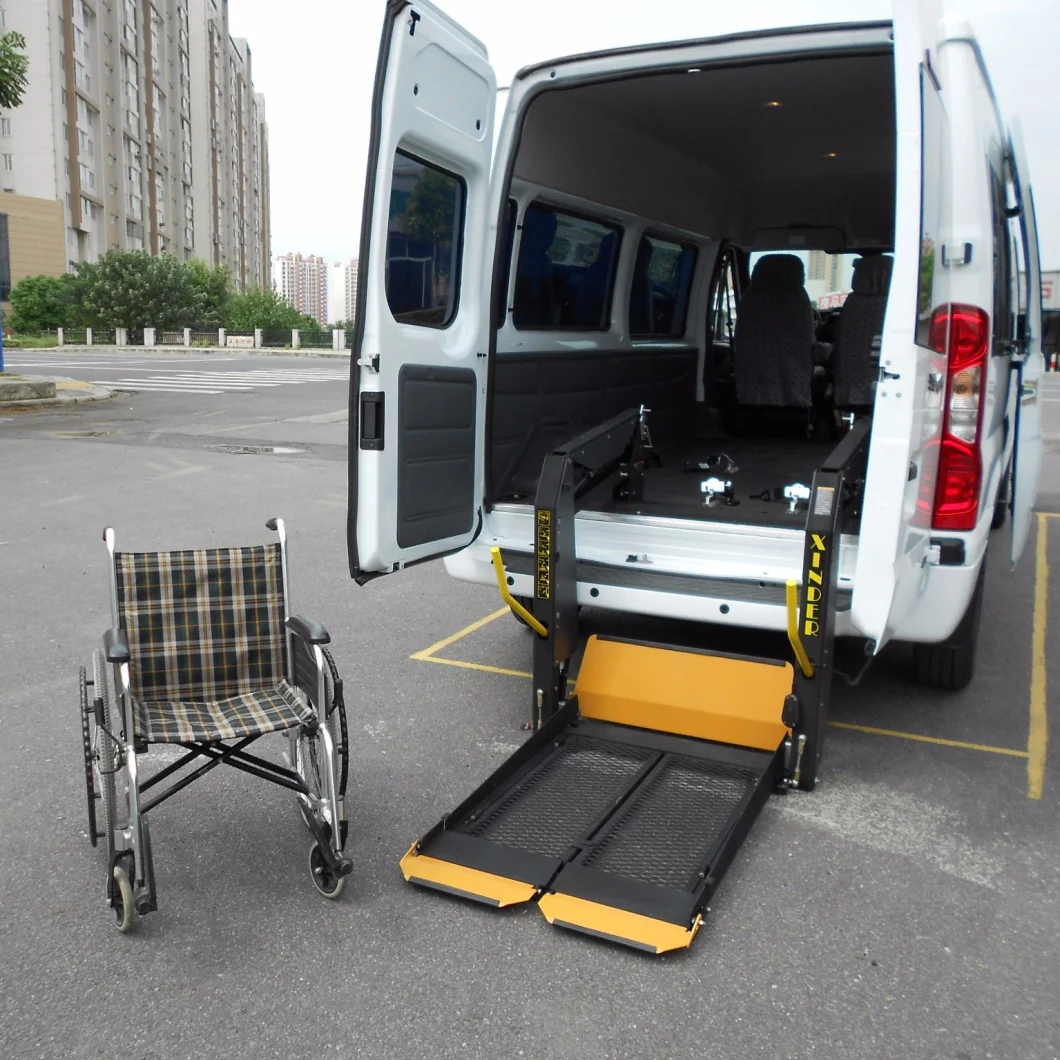

CE Electric Hydraulic Double Arm Lift Chair (WL-D-880S)

Introductions:This series wheelchair lift is to provide car-adaptation solutions for people with reduced or limited mobility.It is designed to help wheelchair occupant to get on van while seated on his wheelchair.This wheelchair lift can be installed at the rear door or side door.Powered by hydraulic system, the movement of

Featured Products

Introductions:

  • This series wheelchair lift is to provide car-adaptation solutions for people with reduced or limited mobility.

  • It is designed to help wheelchair occupant to get on van while seated on his wheelchair.

  • This wheelchair lift can be installed at the rear door or side door.

  • Powered by hydraulic system, the movement of lifting, lowering and folding are fully automatic.

  • DN-880S wheelchair lift has split platform;

  • Provides good visibility both for driver and passengers when stowed;

  • Operated by the wired remote control or by your mobilephone;

  • It also can be operated manually for emergency;

  • CE certified;

  • Loading capacity:300kg;



Advantages:

  • Split platform provides clear path and good visibility both for passengers and the dricer;

  • Mechanical auotomatic roll stops;

  • Warning sound during working;

  • Powerful hydraulic system ensures smooth and stable movements;

  • Equip with handrails to offer increased comfort and security;

  • Anti-skid platform;

  • Manual backup function;

  • Self-locking device;

  • CE certificated;

  • High-gloss polyester powder coat finish to prevent corrosion;

  • Can be controlled by your mobilephone (option);



Technical Specifications:

  • Volatge: 12Vdc or 24Vdc;

  • Power: 800W;

  • Loading capacity: 300kg;

ModelOverall Length(A)Overall Width(B)Overall Height(C)Platform Net Length(D)Platform Net Width(E)Required Door Width(F)
WL-D-880S-1150490mm1137mm1235mm1150mm720mm1250mm
WL-D-880S-1250490mm1237mm1300mm1250mm820mm1330mm

CE Electrical &Hydraulic Wheel Dual-Arm Chair Lift (WL-D-880S)
CE Electrical &Hydraulic Wheel Dual-Arm Chair Lift (WL-D-880S)
CE Electrical &Hydraulic Wheel Dual-Arm Chair Lift (WL-D-880S)
CE Electrical &Hydraulic Wheel Dual-Arm Chair Lift (WL-D-880S)
