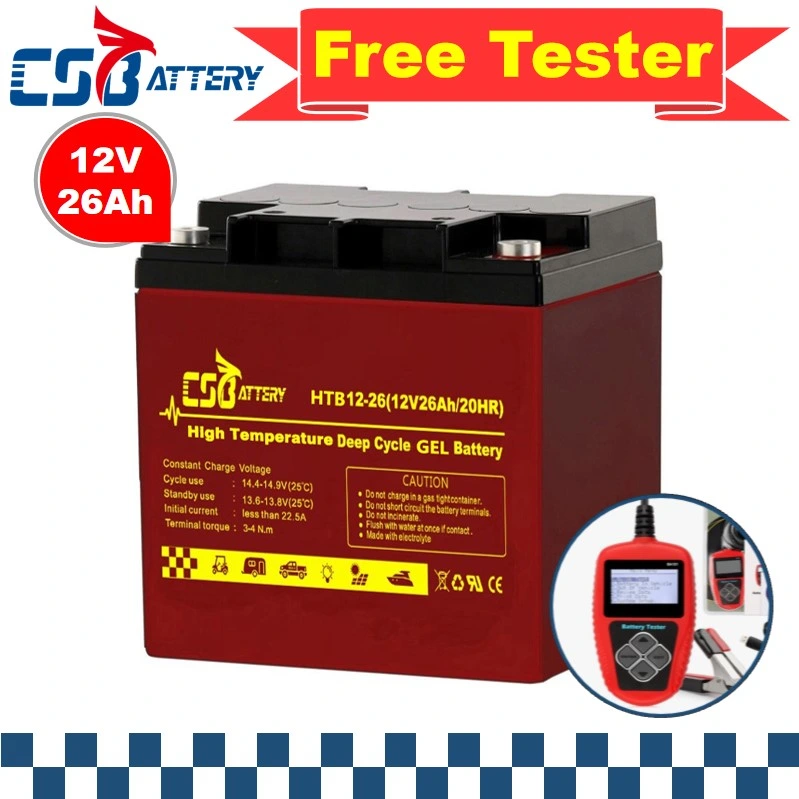

Csbattery 12V26ah spare energy gel battery for power tools/electricity/lighting/pump/wheelchair/AAA

CSBattery High-Temp Deep cycle GEL Battery 12V/6V/8V HTB12V Patented High-Temp Deep Cycle Solar gel battery, own 15-20years long life, your best partner for solar market and hot area. CSBattery HTB series of 12V Solar GEL deep cycle batteries are recognized as the most reliable and high quality battery system

Featured Products


Csbattery 12V26ah Backup Energy Gel Battery for Power-Tools/Electric-Power/Lighting/ Pumps/Wheel-Chair/AAA
CSBattery High-Temp Deep cycle GEL Battery 12V/6V/8V

HTB12V Patented High-Temp Deep Cycle Solar gel battery, own 15-20years long life, your best partner for solar market and hot area.

CSBattery HTB series of 12V Solar GEL deep cycle batteries are recognized as the most reliable and high quality battery system in the industry. They are designed with advanced patented GEL technology, Long service life designed with 15-20 years, 50% DOD 1500-1600 Cycles, the batteries comply to the most popular international standards, such as IEC60896-21/22, BS6290-4, Eurobat Guide.

Deep Cycle GEL Batteries 12V100Ah, 150Ah, 200Ah most popular models Advanced Features:
Ø Environmentally friendly         Ø Completely Maintenance-Free        ØNon-Spillable construction design.
Ø Wide Operating Temperature Range(-20°C~+60°C)         Ø Longer Life(20years designed life)          Ø Explosion Proof
Ø Valve Regulated & High Discharge Rate Capability         Ø Low Self Discharge         Ø Independent of Position
Ø Ease of Shipment         Ø No need of balanced charge or boost         Ø No Memory

Chinese Best Quality Solar GEL Battery Sunny Battery Applications:
Ø Communication equipment Ø Telecommunication control equipment Ø Emergency lighting systems   Ø Electric power systems Ø Power station
Ø Nuclear power station Ø Solar powered and wind powered systems  Ø Load leveling and storage equipment  Ø  Marine equipment  Ø Power generation plants
Ø Alarm systems ØUninterruptible power supplies and stand-by power for computers Ø Medical equipment  Ø Fire and security systems Ø Control equipment
Ø Stand-by electric power.

CSBattery HTB12-26 UPS system Long Life Deep Cycle GEL Solar Battery
-------------------------------------------------------------------------------------------------
CSBattery HTB12-26 UPS system Long Life Deep Cycle GEL Solar Battery
HTB12-26
Nominal Voltage 12V (6 cells per unit)
Design Floating Life @ 25ºC 15 Years
Nominal Capacity @ 25ºC 20 hour rate@ 21.0A, 5.4V26Ah
Capacity @ 25ºC10 hour rate (37.8A, 5.4V) 23Ah
5 hour rate (66.8A, 5.25V) 20.5Ah
1 hour rate (233.3A, 4.8V) 15.9Ah
Internal Resistance Full Charged Battery@ 25ºC ≤11.5mΩ
Ambient TemperatureDischarge -25ºC~60ºC
Charge -25ºC~60ºC
Storage -25ºC~60ºC
Max.Discharge Current@ 25ºC 1260A(5s)
Capacity affected by Temperature (10 hour )40ºC 108%
25ºC 100%
0ºC 90%
-15ºC70%
Self-Discharge@25ºCper Month 3%
Charge (Constant Voltage) @ 25ºCStandby Use Initial Charging Current Less than 6A Voltage 13.6 - 13.8V
Cycle UseInitial Charging Current Less than 6A Voltage 14.4 - 14.9V
Dimension (mm*mm*mm)Length 166±1 * Width 126±1 * Height  174±1 (Total Height 174±1)
Weight (kg) 8.5±3%

CSBattery Product Structure
Csbattery 12V26ah Backup Energy Gel Battery for Power-Tools/Electric-Power/Lighting/ Pumps/Wheel-Chair/AAA

ComponentPositive plateNegative plateContaine r &CoverSafety valveTerminalSeparatorElectrolytePillar seal
FeaturesThick high Sn low Ca grid with Special pasteBalanced Pb-Ca grid
for improved recombinati on efficiencv
Fire resistanc e ABS (UL94-V0octional)Flame
Si-Rubber and aging resistance
Female Copper lnsertAdvanced PVC /AGM
separator for high pressure cell desbm
Silicon GelTwo layers epoxy resin seal

        Ø Positive plate : Thick high Sn low Ca 3D flat pasted plate                Ø Negative plate : Balanced Pb-Ca grid and AM with Supper-C addtives
         Ø Separator : Imported Amer-sil PVC separator for Gel battery        Ø Electrolyte : nano GEL electrolyte
         Ø Battery container and cover : ABS for higher temperature             Ø Pillar seal : 100% factory tested, proven two layers epoxy resin seal
         Ø Relief valve : Complete with integrated flame arrestor

CSBattery Assembling
Csbattery 12V26ah Backup Energy Gel Battery for Power-Tools/Electric-Power/Lighting/ Pumps/Wheel-Chair/AAA
CSBattery Quality Control
Csbattery 12V26ah Backup Energy Gel Battery for Power-Tools/Electric-Power/Lighting/ Pumps/Wheel-Chair/AAA
CSBattery Certifications
Csbattery 12V26ah Backup Energy Gel Battery for Power-Tools/Electric-Power/Lighting/ Pumps/Wheel-Chair/AAA
Ø  IEC 60896-21/22                 Ø  IEC 61427     Ø  ISO9001/14001/18001        Ø  Eurobat guide, long life     Ø  BS6290 part 4
Ø  GB/T 22473                          Ø  CE                  Ø  MH63727-UL

CSBattery Project
Csbattery 12V26ah Backup Energy Gel Battery for Power-Tools/Electric-Power/Lighting/ Pumps/Wheel-Chair/AAA
CSBattery Application
Csbattery 12V26ah Backup Energy Gel Battery for Power-Tools/Electric-Power/Lighting/ Pumps/Wheel-Chair/AAA
Applicationg for HTB High Temperature Deep Cycle GELBattery:
ØElectric Powered Vehicles ØWheel Chairs ØBTS Stations ØMedical Equipment Ø Solar and Wind ØGolf Cars and Buggies  ØPower Tools ØControl System ØUPS systems ØEmergency systems

CSBattery Factory
Csbattery 12V26ah Backup Energy Gel Battery for Power-Tools/Electric-Power/Lighting/ Pumps/Wheel-Chair/AAA
CSBattery ENERGY CO.,LIMITED is a professional manufacturer and exporter of environmental friendly Rechargeable Deep Cycle AGM Sealed Lead Acid (SLA) Batteries, Solar GEL Batteries, Front Terminal Battery, High Temperature long life GEL battery, OPzV Battery, Car/Auto Batteries, Telecom Batteries, Lithium batteries and other Solar related products such as Solar inverter, Solar charger controller, Solar panel and so on.

CSBattery Customers
Csbattery 12V26ah Backup Energy Gel Battery for Power-Tools/Electric-Power/Lighting/ Pumps/Wheel-Chair/AAA
CSBattery Packing
Csbattery 12V26ah Backup Energy Gel Battery for Power-Tools/Electric-Power/Lighting/ Pumps/Wheel-Chair/AAA

CSBattery FAQ
---------------------------------------------------

                Ø Q1. Can your battery be delivered by sea and air?
                A: Yes, our batteries can be delivered both by sea and by air. We have MSDS, test report for safe transport as non-dangerous products.
                Ø Q2. Can I put my logo on the battery?
                A: Yes, you can print your logo on our batteries when you order reach 20ft container quantity. If not, price will be negotiated.
                Ø Q3. Can I fast charge my battery?
                A: Fast charging is not recommended as ifs harmful for the battery.
                ØQ4. Can I do a partial replacement of my batteries?
                A: Partial battery replacement of lead acid battery banks is not recommended.
                Ø Q5. How about your delivery time usually?
                A: About 7 days for stock products, around 20 days for half container products, 30 days for 20ft full container products.
                Ø Q6. Are you a battery manufacturer, and do you produce the plate by yourself ?
                A: Yes, we are a professional battery manufacture in Guangdong Province, China. And we produce plates by ourselves.
                Ø Q7. What certificate your company have?
                A: ISO 9001, ISO 14001, OHSAS 18001, CE, UL, IEC 61427 test report, Patent for gel technology and other Chinese honor.
                Ø Q8.What is your warranty time for VRLA battery ?
                A: It depends on battery capacity, depth of discharge, and battery usage. Please kindly contact us for accurate information based on detailed requirements.
                Ø Q9. Why battery has different capacity at different hour rate?
                A: The capacity of a battery, in Ahs, is a dynamic number that is dependent on the discharge current. For example, a battery that is discharged at 10A will give you more capacity than a battery that is discharged at 100A. With the 20-hr rate, the battery is able to deliver more Ahs than with the 2-hr rate because the 20-hr rate uses a lower discharge current than the 2-hr rate.
                Ø Q10. What is the shelf life of VRLA battery and how to maintain the battery?
                A: The limiting factor of battery's shelf life is the rate of self-discharge which itself is temperature dependent. VRLA batteries will self-discharge less than 3% per month at 77° F (25° C). VRLA batteries should not be stored for more than 6 months at 77° F (25° C) without recharged. If in hot temperature, recharge it every 3 month. When batteries are taken out of long storage, it is recommended to recharge before use.
                Ø Q11. How does your factory control the quality?
                A: We Adopt ISO 9001 quality system to control the quality. We have Incoming Quality Control (IQC) department to test and confirm raw material meets high quality producing requirements, Production Quality Control (PQC) department contains The first Inspection, In-process quality control, acceptance inspection and full inspection, Outgoing Quality Control (OQC) department confirm no defective batteries come out from the factory.


Product Specifications and Models
----------------------------------------------------------------------------

High temperature Long Life Deep Cycle 12V  GEL BATTERY  Module list
ModelNominal Voltage (V)Capacity (Ah) Dimension (mm)Net WeightGross WeightTerminal
LengthWidthHeightTotal Heightkgskgs
HTB12-14121415299961023.83.9F1/F2
HTB12-2012201817716716766.1T1/L1
HTB12-2412241661751261268.38.4M6
HTB12-2612261651261741798.48.5M6
HTB12-35123519613015516710.510.7M6
HTB12-40124019816617417414.214.4M6
HTB12-5512552291382082121616.5M6
HTB12-70127035016717817823.323.8M6
HTB12-7512752601692082272525.5M6
HTB12-85128526016920822726.126.6M6
HTB12-90129030716921121628.228.7M6
HTB12-1001210030716921121630.230.7M6
HTB12-1101211032817221822233.534M8
HTB12-1201212040717321023339.239.7M8
HTB12-1351213534417228028540.841.3M8
HTB12-1501215048417124124145.546M8
HTB12-180121805322062162225656.5M8
HTB12-2001220053220621622258.659.1M8
HTB12-230122305222402192256565.5M8
HTB12-250122505202692032077171.5M8
HTB12-300123005202692202267777.5M8
